Particle Characterization with ImageJ


This is a tutorial to illustrate the basic capability of imageJ. It's modified from a tutorial on ImageJ's website.

In this tutorial, we'll demonstrate how to use ImageJ to extract particles and determine size distributions of the particles from a digital image.


First, You'll need to download the ImageJ software from here and install it.

1. Open embryos image via Select File → Open Samples → Embryos

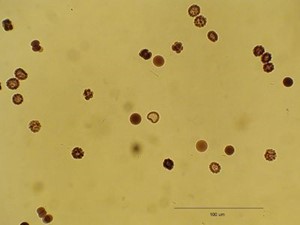

Brown background with cells

2. Draw line over the scale bar and select Analyze → Set Scale, In Set Scale window enter 100 into the 'Known Distance' box and Change the 'Unit of Measurement' box to u and m, check 'Global'.

3. Convert the image to grayscale: Image → Type → 8-bit

Black background with cells

4. Segment the image using the automated routine: Process → Binary → Make Binary

Alternatively you can segment the image manually with Image → Adjust → Threshold and select a threshold range of 0 to 121.

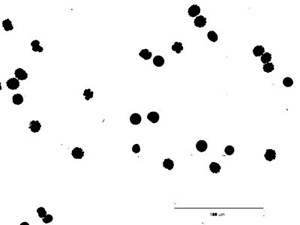

White background with cells

5. Fill the holes in particles: Process → Binary → Fill holes

White background with cells and black dots

6. Surround the scale bar with the rectangular selection tool and clear the contents (Edit → Clear).

White background with cells and black dots without 100cm

7. Notice in the binary image, there are several particles connected together. Use eraser tool to separate the connected particle manually.

White background with cells and black dots without 100cm 2

8. Analyze particles: Analyze → Analyze Particles

Enter 20 as the minimum particle size, toggle 'Show Outlines', check 'exclude on edges', ‘Display Results’, ‘Summarize’ and ‘Record Stats’ and click 'OK'. 28 embryos are counted, numbered. The data window lists the area (in U and M squared) for each embryo. These data could be copied to a spreadsheet. A summary of the particle count is also shown in another data window.

White background with cells and white dots without 100cm 2
